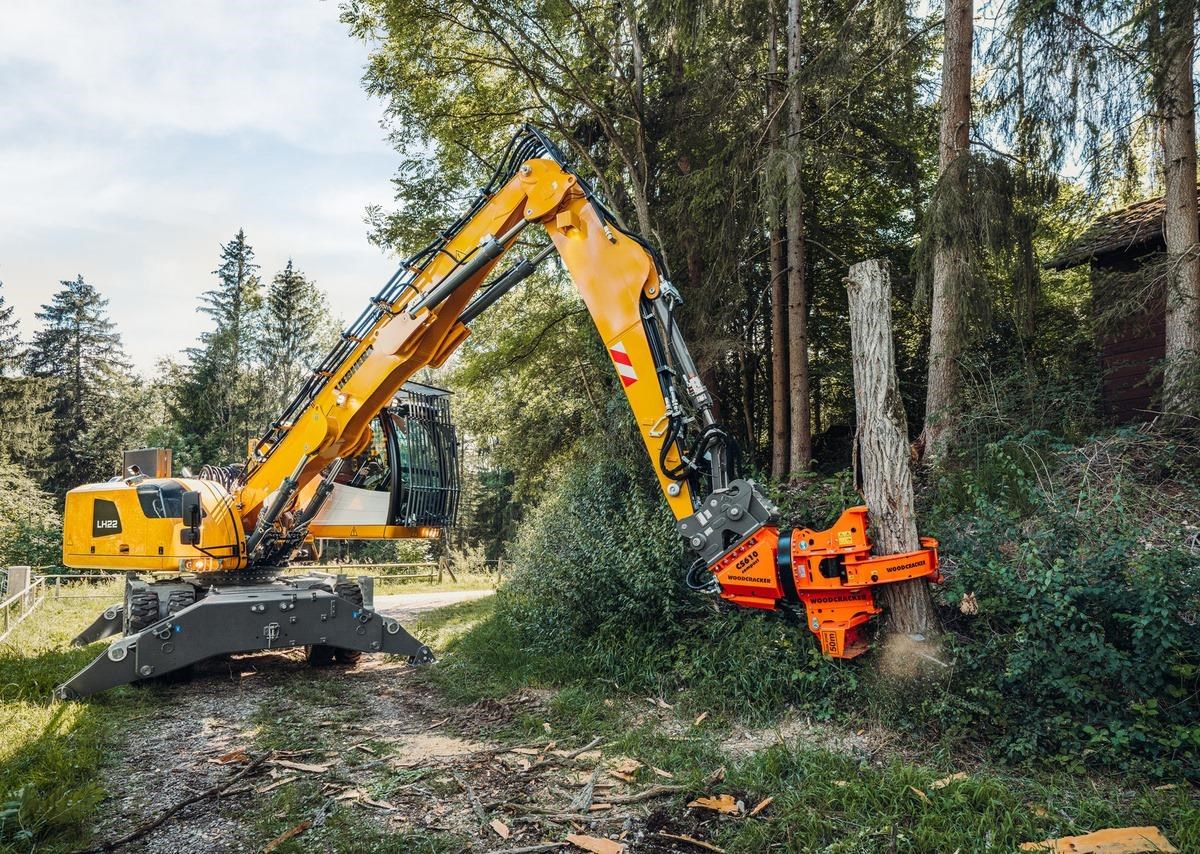

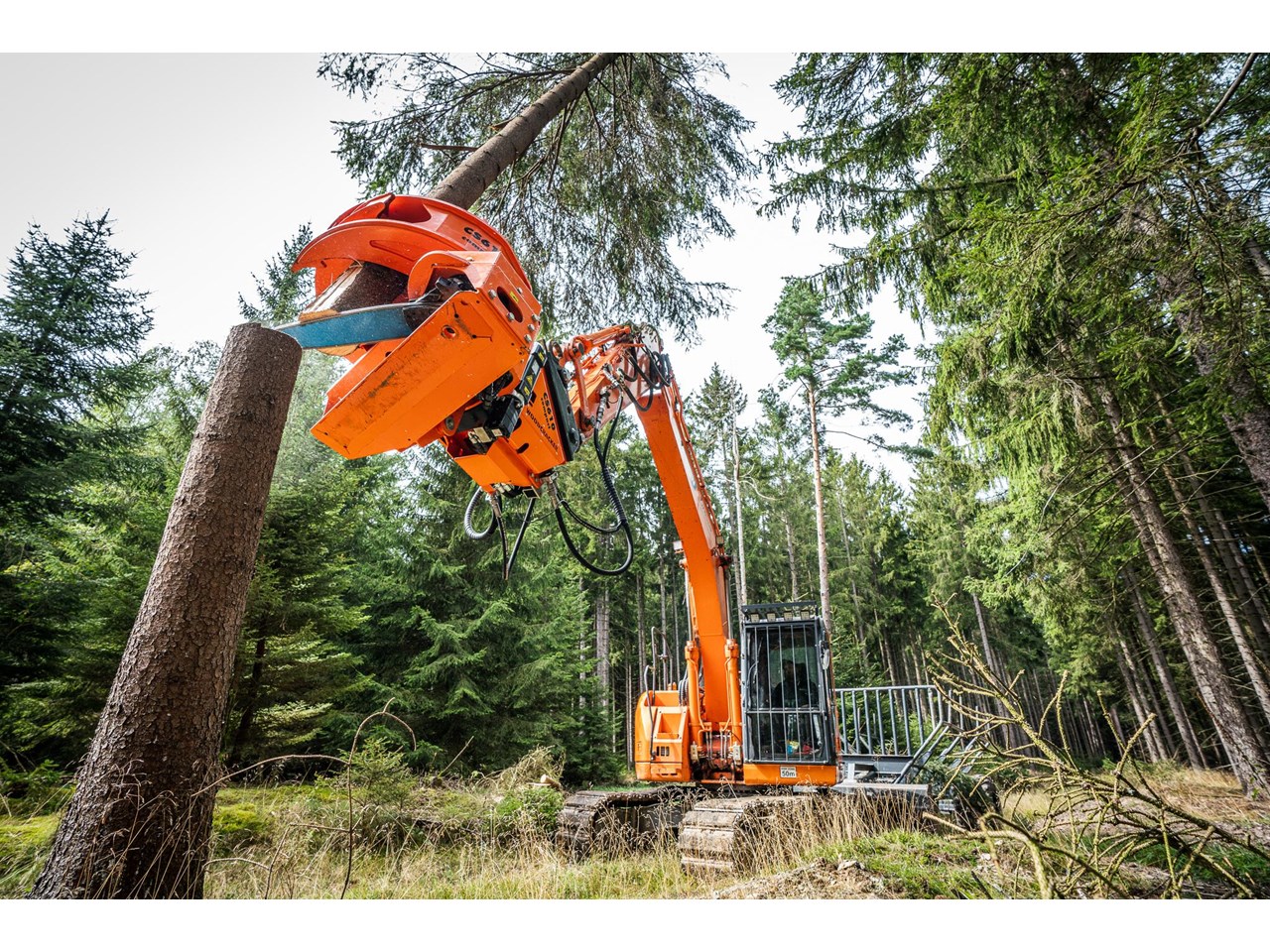

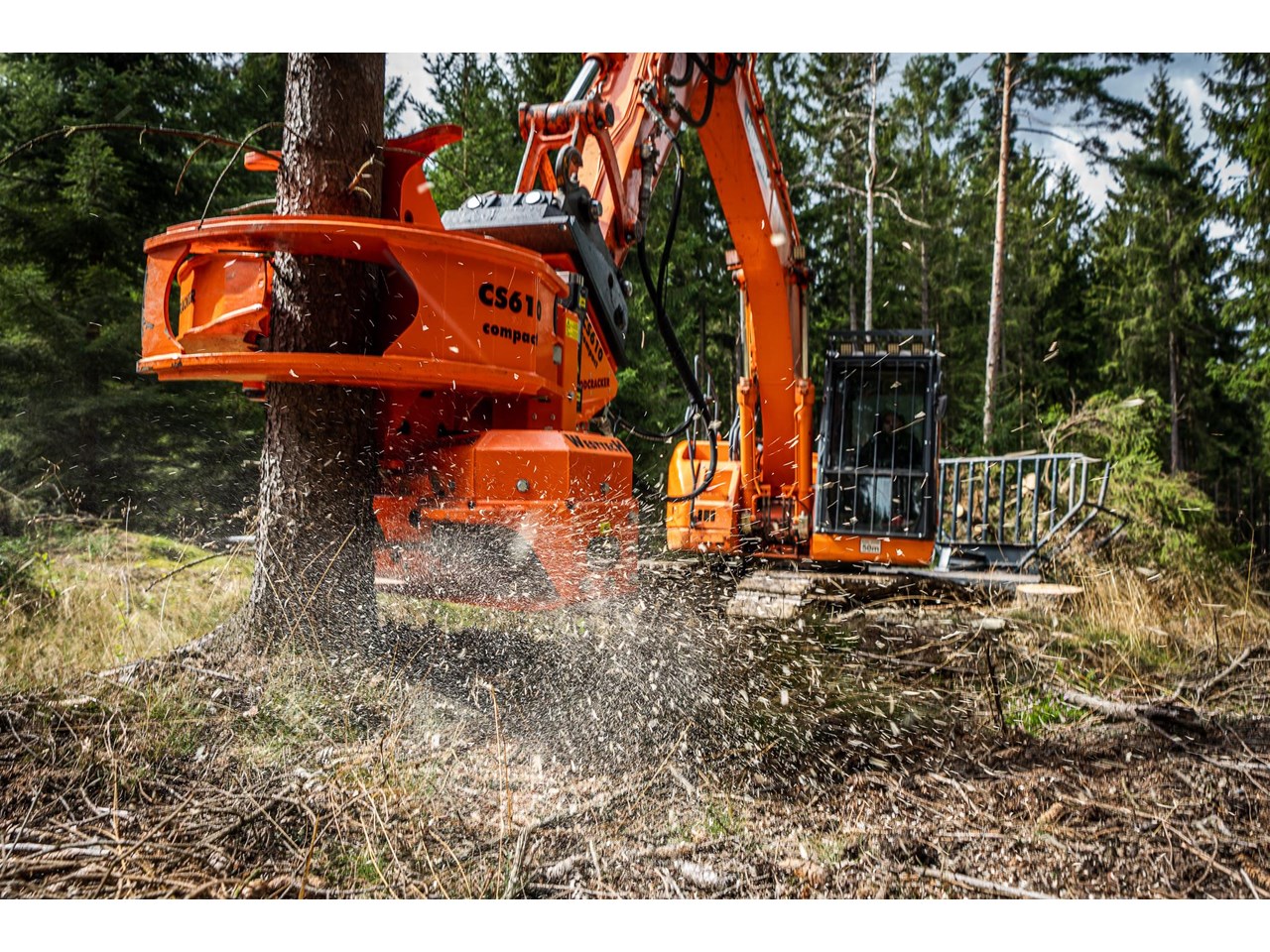

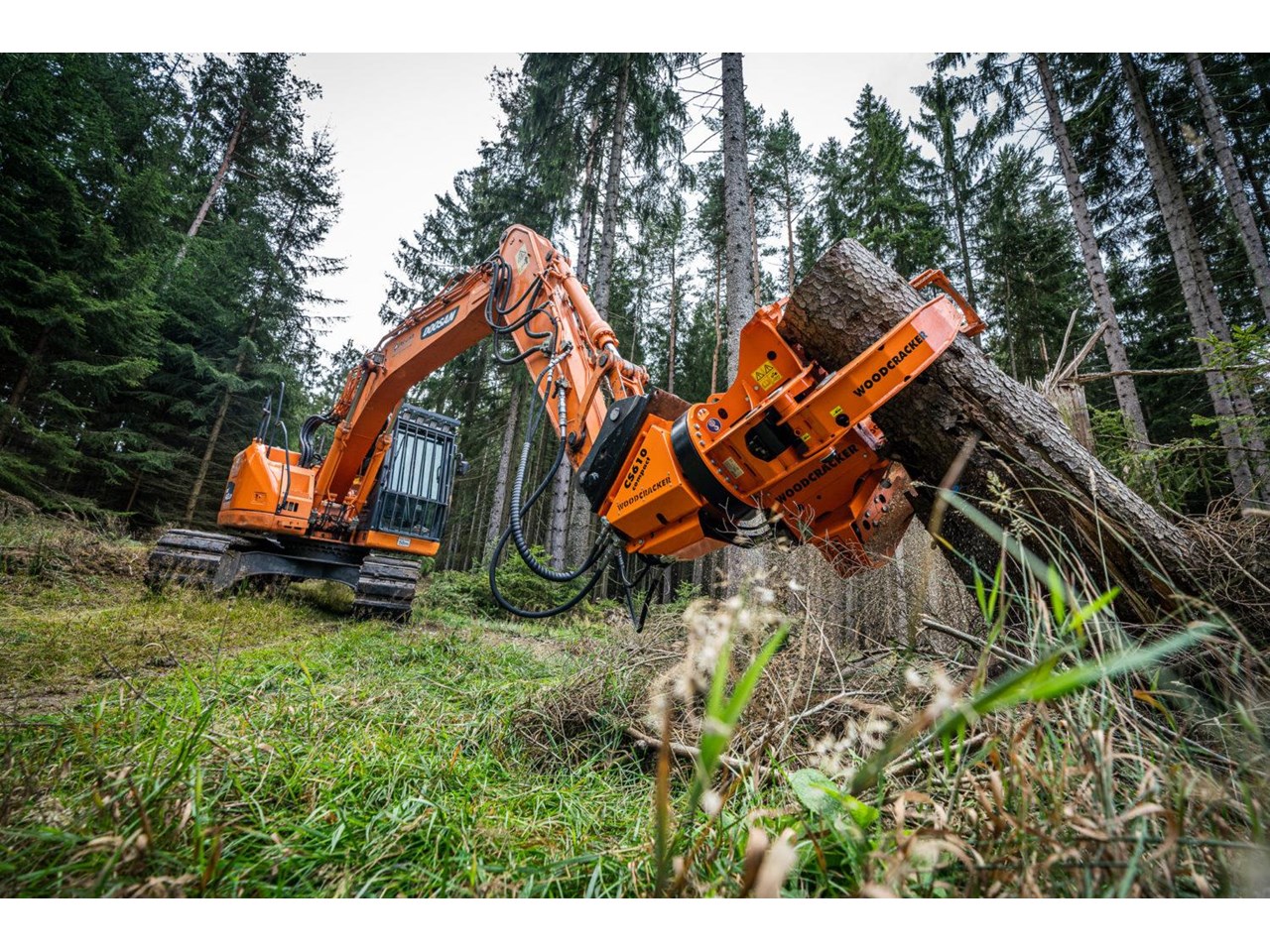

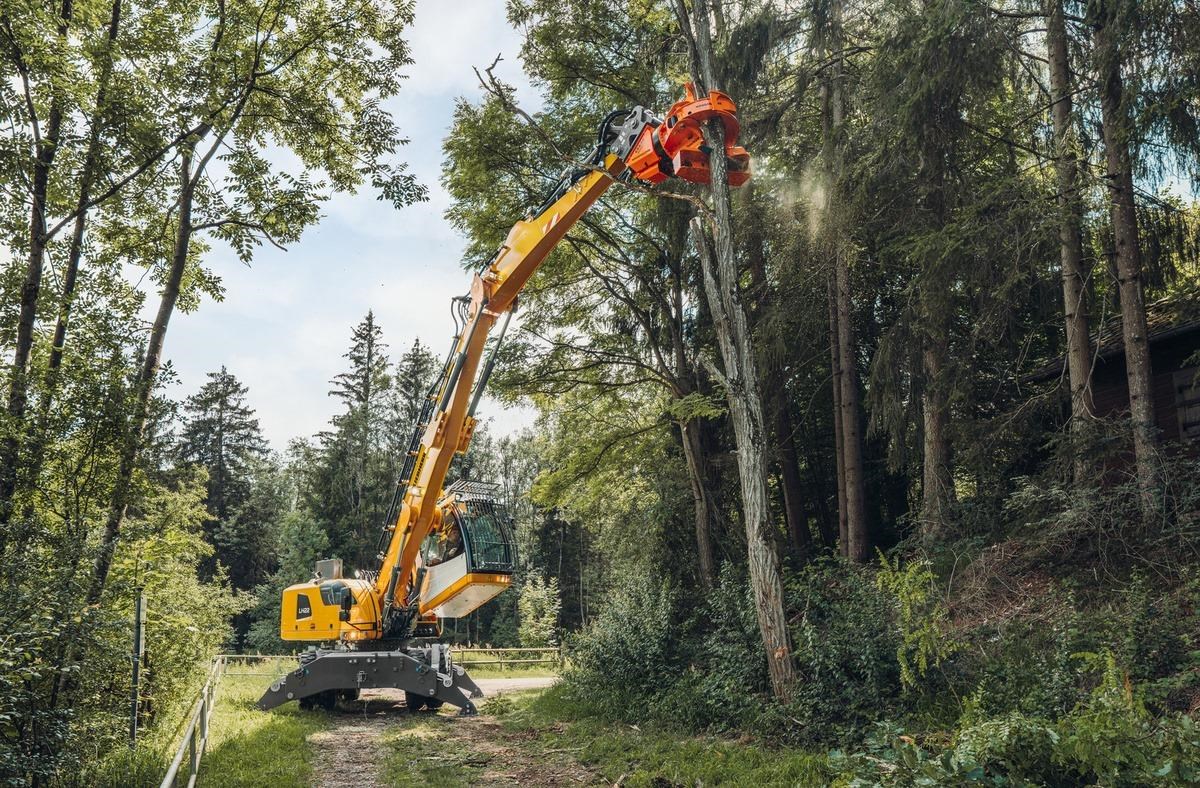

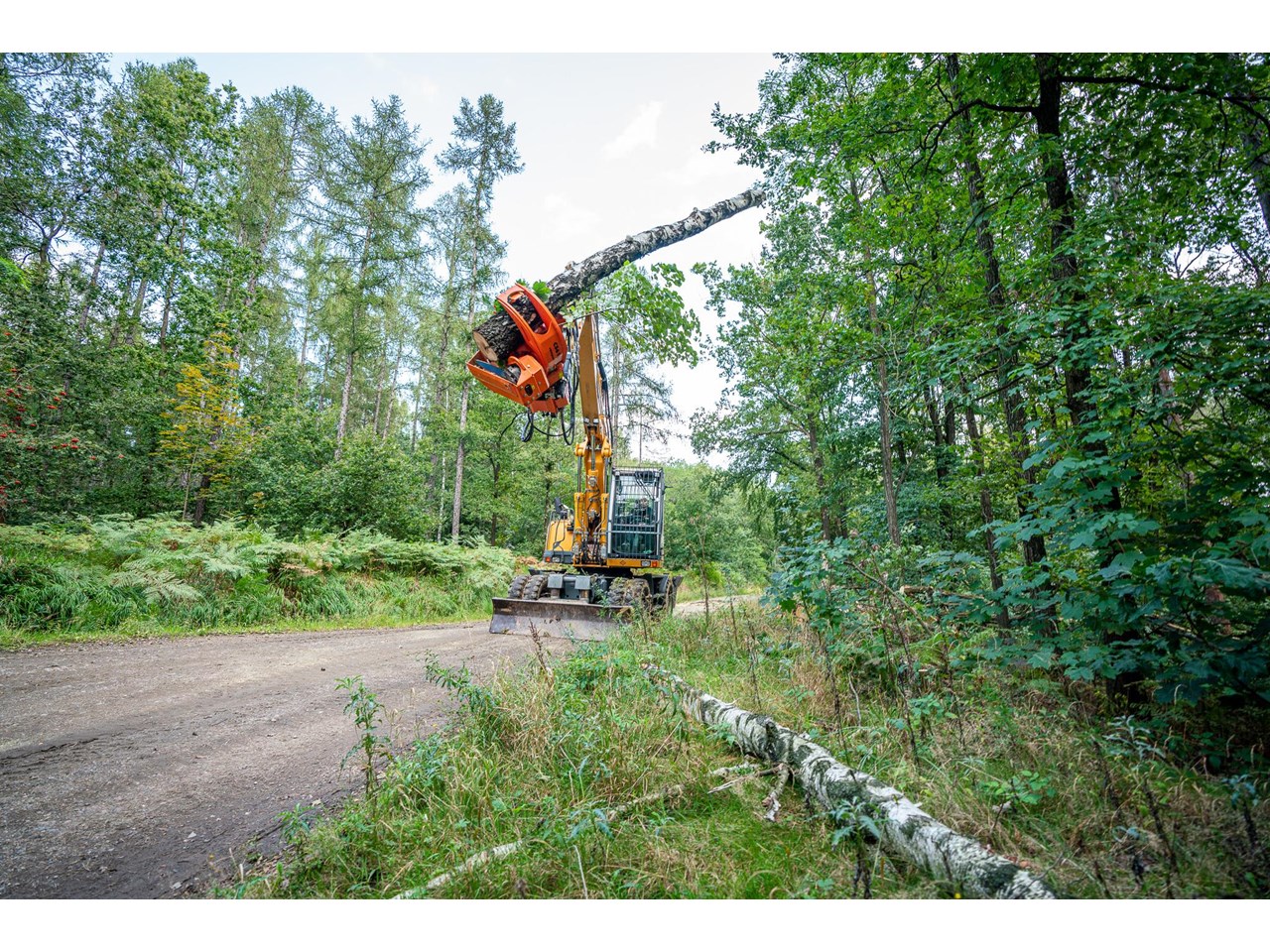

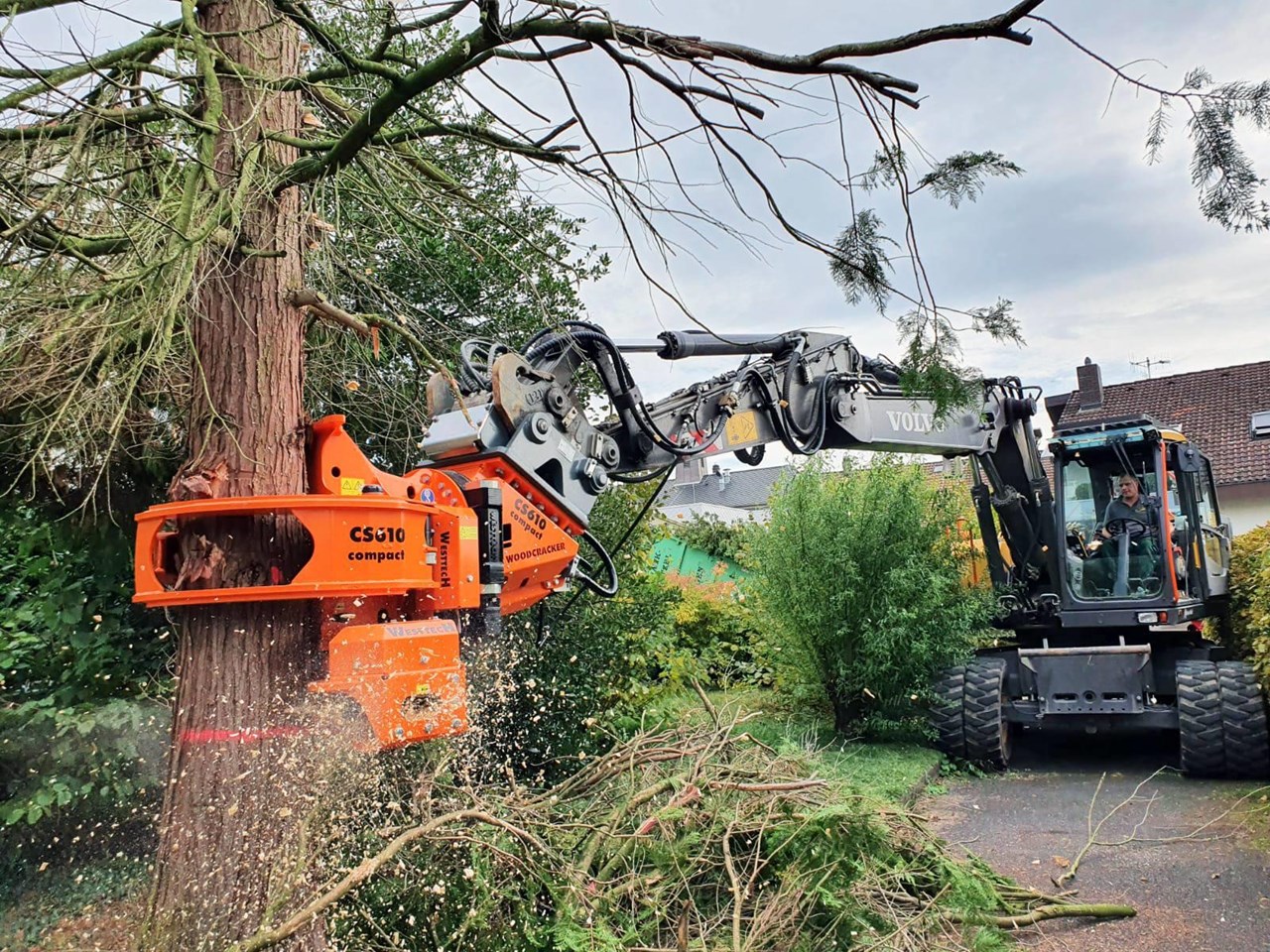

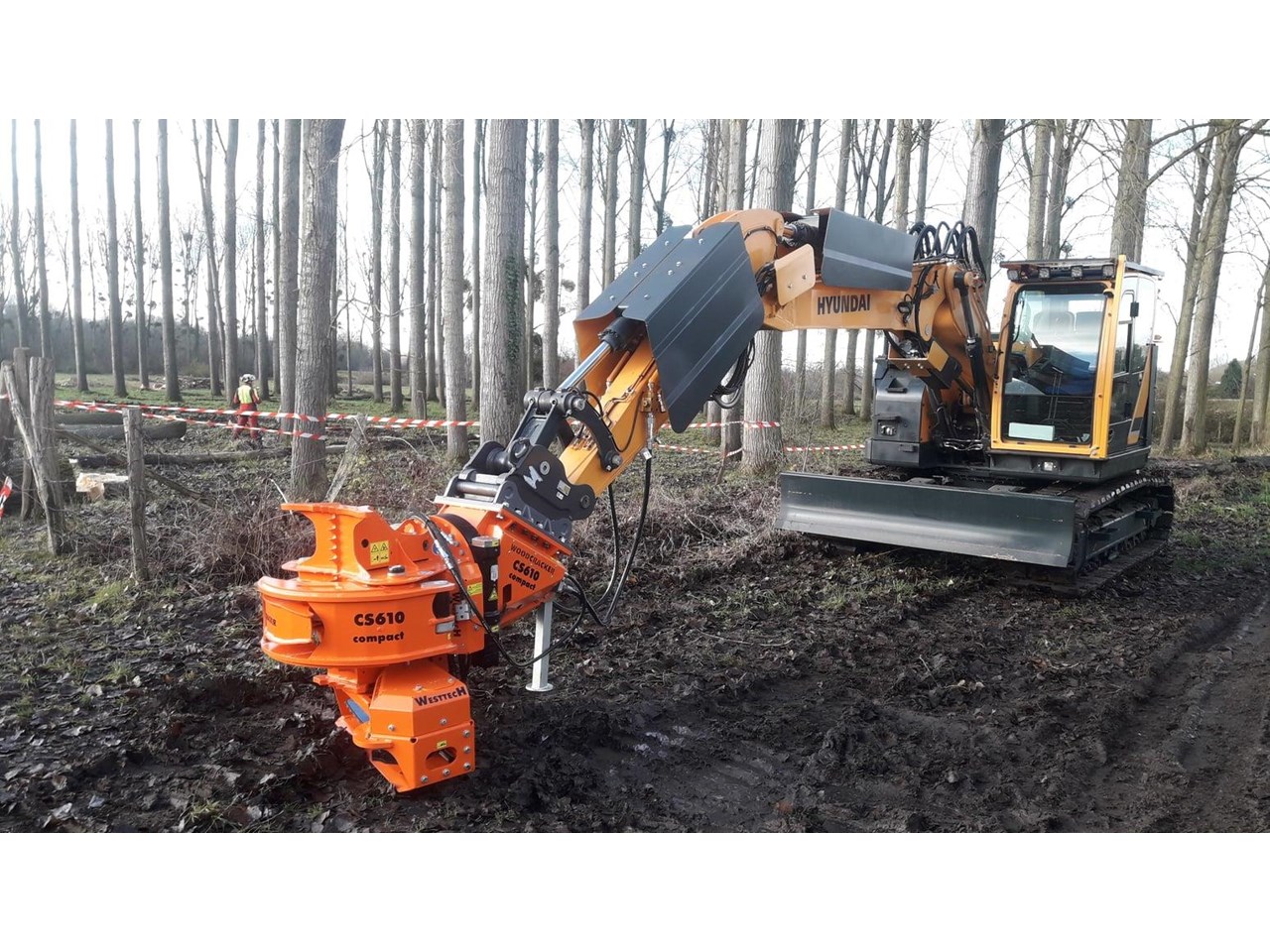

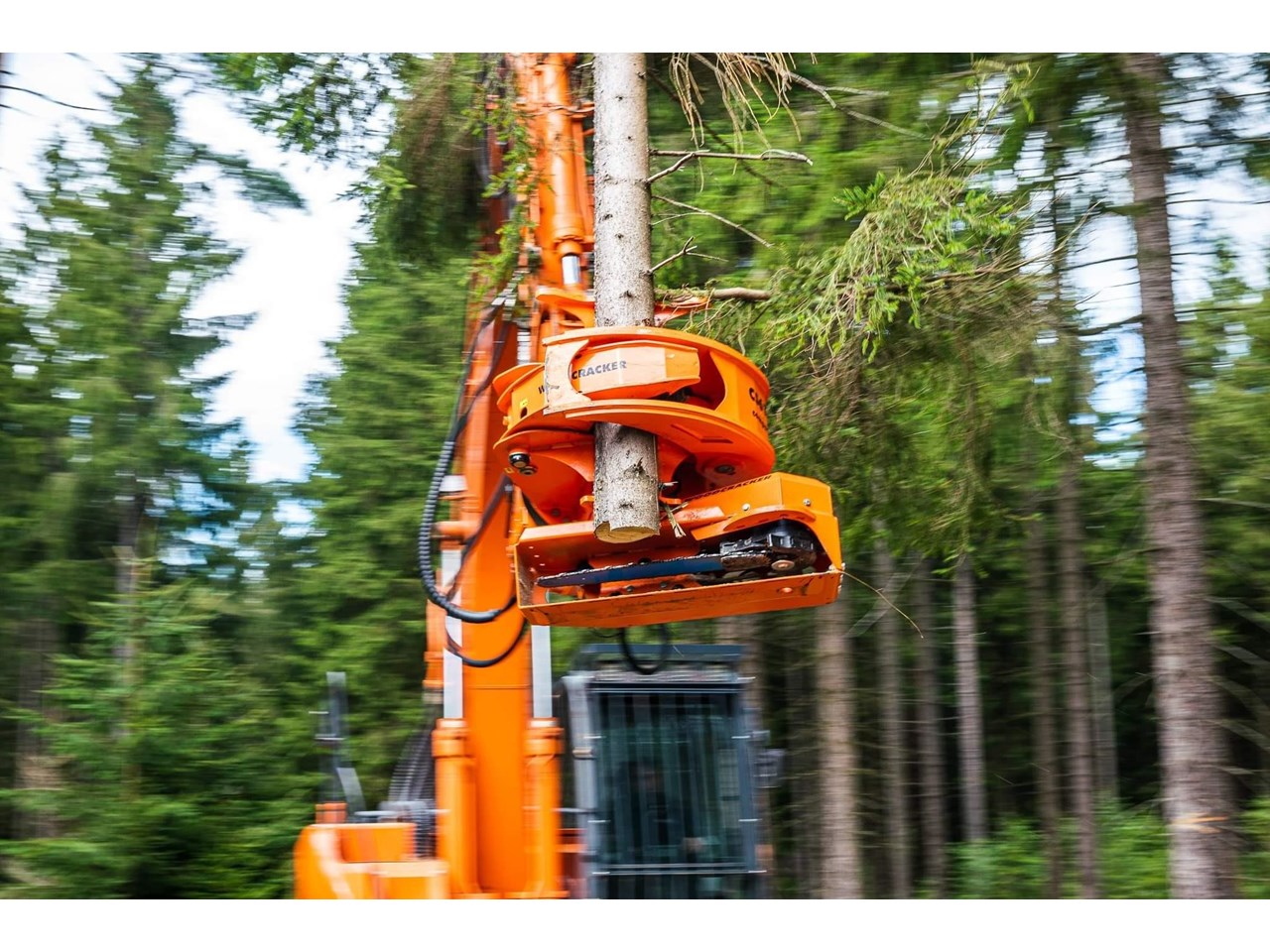

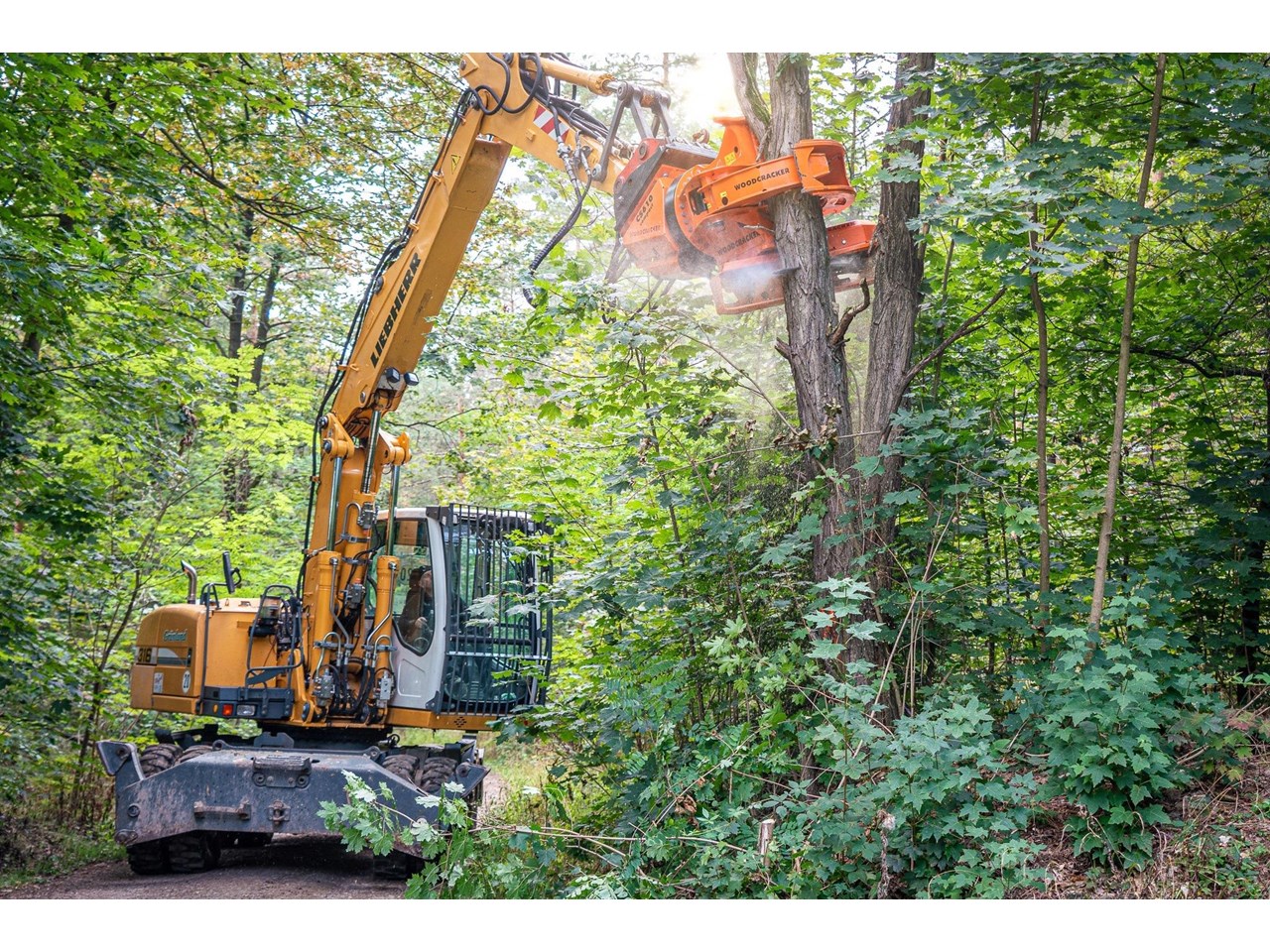

WESTTECH WOODCRACKER CS610 COMPACT GRAPPLE SAW

Designed and purpose-built in Austria for tree care works.

Produced especially for the safe dismantling of trees in sections, the CS610 Compact combines advanced features from larger forestry-specific attachments, in a package suited to excavators in the 15-20 ton class.

- High strength, low wear Hardox steel
- 360 degree continuous rotation
- Rigid mounted rotator with single or optional twin motor drive, providing both strong holding and turning force
- Advanced Hultdins SuperCut saw unit, .404" pitch cutting system with automatic chain tensioning
- Up to 610mm diameter cut capacity
- Grease type chain and bar lubrication for reduced oil mist and improved service life of cutting system components
- Only two hydraulic circuits and one electrical connection required from the base machine to operate all functions
- Hydraulic flow required 65-110L per minute
- 1280mm grapple opening
- Attachment weight 980kg

Custom bolt-on quick hitch head plates are fabricated here to suit your specific machine, not included in listed price.

Researching grapple saw options?
Ensure you'll have a trusted and knowledgeable partner when it comes to equipment selection, carrier suitability, the various facets of saw safety and your WH&S obligations.

Contact us with any queries and to discuss tailored package pricing, as well as attachment options to suit different machines or work applications.
