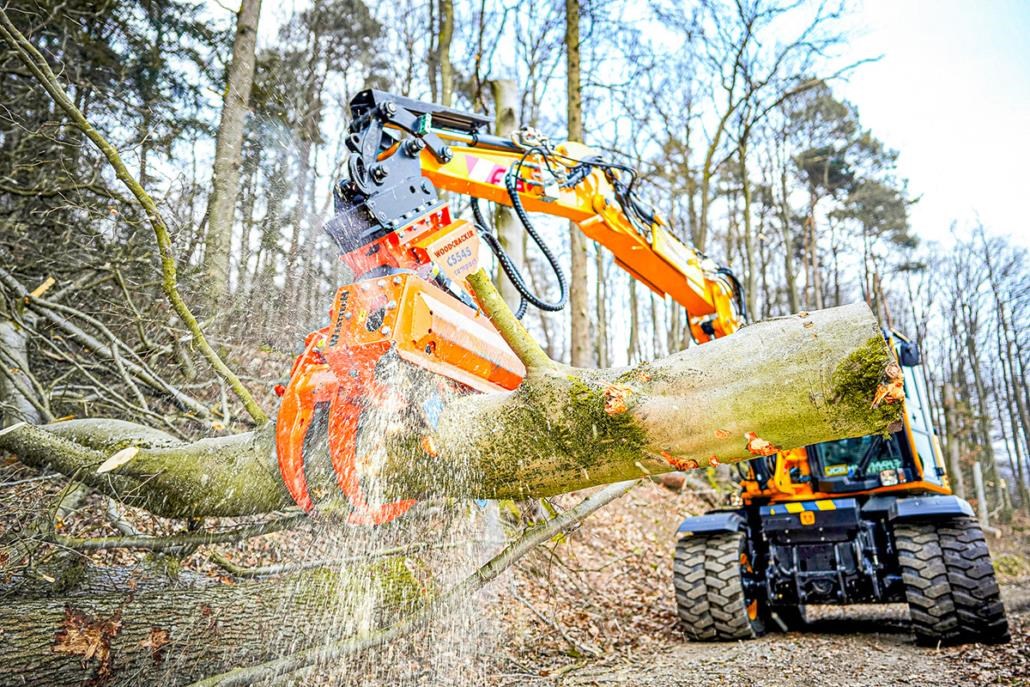

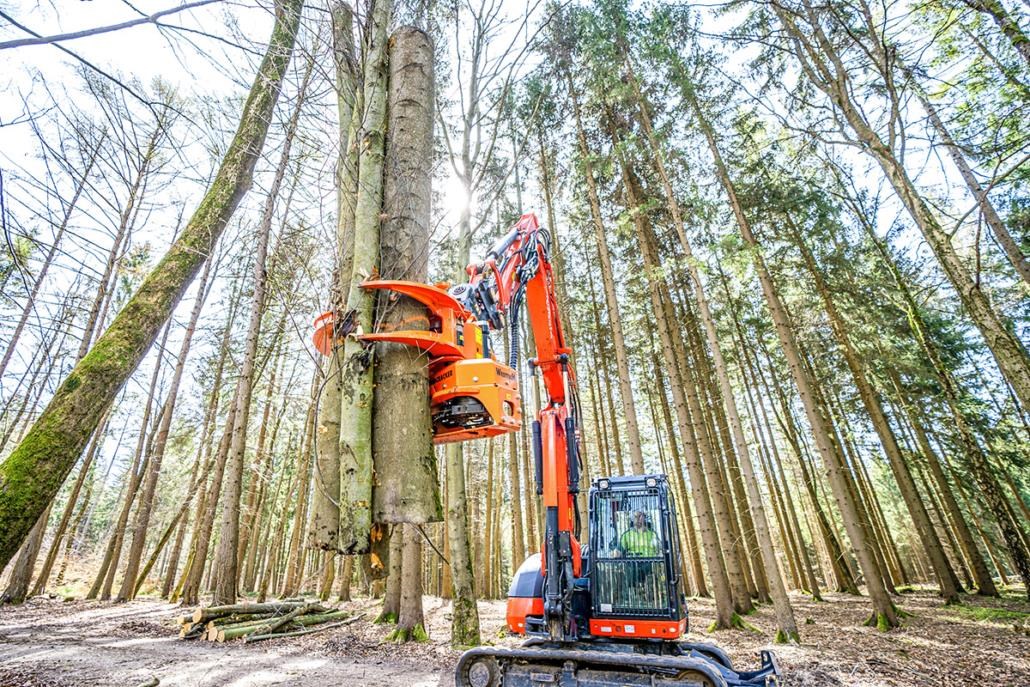

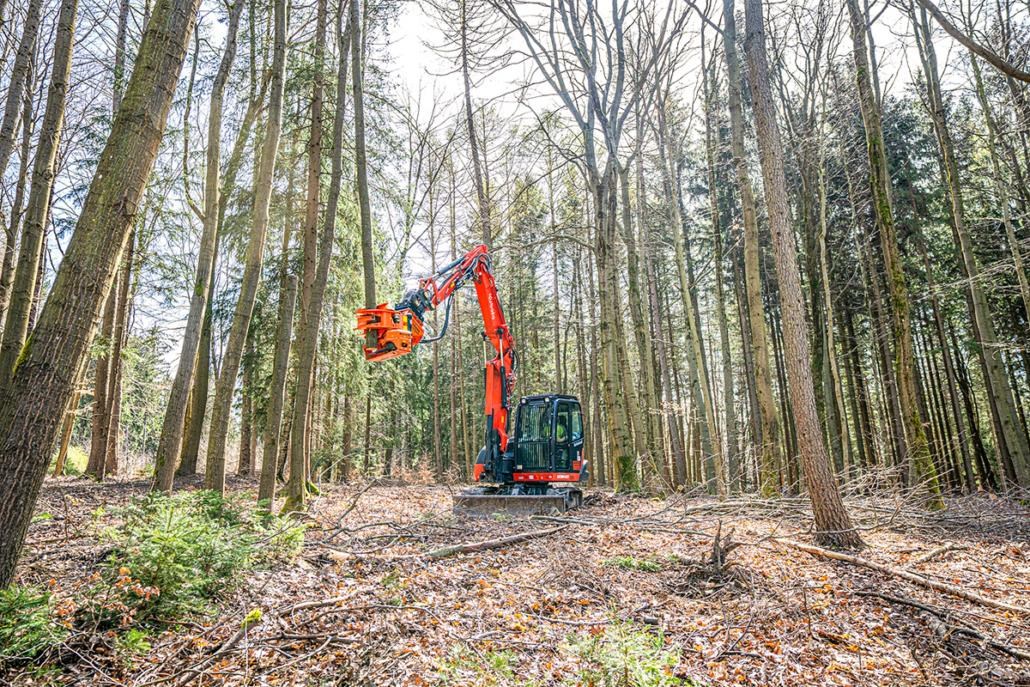

WESTTECH WOODCRACKER CS545 COMPACT GRAPPLE SAW

Designed and purpose-built in Austria for tree care works.

New release for 2024!
The CS545 Compact is a smaller sibling to the CS610, intended for excavators between 8 and 15 ton, whilst still offering advanced features found on larger forestry-specific attachments.

- High strength, low wear Hardox steel
- 360 degree continuous rotation
- Rigid mounted rotator providing both strong holding and turning force
- Advanced Hultdins SuperCut saw unit, .404" pitch cutting system with automatic chain tensioning
- Up to 540mm diameter cut capacity
- Grease type chain and bar lubrication for reduced oil mist and improved service life of cutting system components
- Only two Aux hydraulic circuits and one electrical connection required from the base machine to operate all functions
- Hydraulic flow required 50-100L per minute
- 1280mm grapple opening
- Attachment weight 980kg

Custom bolt-on quick hitch head plates are fabricated here to suit your specific machine, quoted separately.

Researching grapple saw options?
Ensure you'll have a trusted and knowledgeable partner when it comes to equipment selection, carrier suitability, the various facets of saw safety and your WH&S obligations.

Contact us with any queries and to discuss tailored package pricing, as well as attachment options to suit different machines or work applications.
