2024 LIPPMANN 622S T HIGH PRODUCTION TRACKED SCREEN

Sale Price: POA

Fixed multi-year premium option now available

* View disclaimer

* This monthly or total insurance premium indication is for a 60-month period and is provided by EquipCover (ABN 80 637 316 673).

EquipCover is a referral business only, not an insurer or insurance broker. The equipment price shown may not include other additional costs such as stamp duty, government fees and other charges payable in relation to the purchase of the equipment. The information provided by EquipCover is for general informational purposes only. Some links provided are referral, affiliate, or recommendation links, which means we may receive a referral fee or other benefit if you choose to click on a link or make a purchase through it.

Any referral benefits we receive come at no additional cost to you, unless otherwise stated. EquipCover only display products, services, or resources that we believe may be helpful or relevant. However, all opinions expressed by EquipCover are our own and are not influenced by any referral partnerships. EquipCover does not guarantee results, outcomes, or experiences from using any product, service, or website linked through our referrals. Your results may vary. EquipCover is not responsible for the content, policies, or practices of any third-party websites linked through referral links. Please review their terms and policies before engaging with them.

By using referral links provided by EquipCover, you acknowledge that it is your responsibility to evaluate whether any product or service is appropriate for you. If you have any questions about this disclaimer, you may contact us at info@equipcover.au

Call now: 02 8279 7105

Phone

Fixed multi-year premium option now available

* View disclaimer

* This monthly or total insurance premium indication is for a 60-month period and is provided by EquipCover (ABN 80 637 316 673).

Contact Seller

Phone: 02 8279 7105

Email Advertiser:

Name

Phone

Email Address

Has this sold ?

Can I arrange a viewing ?

Your Message

Remember my details

Subscribe to future communications

For security reasons, do not select "Remember my details" if you are using a shared computer.

View our privacy policy, collection notice and terms and conditions to understand how we use your personal information.

Dealer

TRICON MINING EQUIPMENT PTY LTD

11 Lucca Road

Wyong, NSW

Visit website

Features

Title	2024 LIPPMANN 622S T HIGH PRODUCTION TRACKED SCREEN
Type	Screening and Crushing
Sub Type	Screening - Crushing
Class	Vibrating Screens
Make	LIPPMANN
Model	622S T HIGH PRODUCTION TRACKED SCREEN
Year	2024
Sale Price	POA
Listing Type	New
Stock Number	271124_1
RefCode	TA1250230

Description

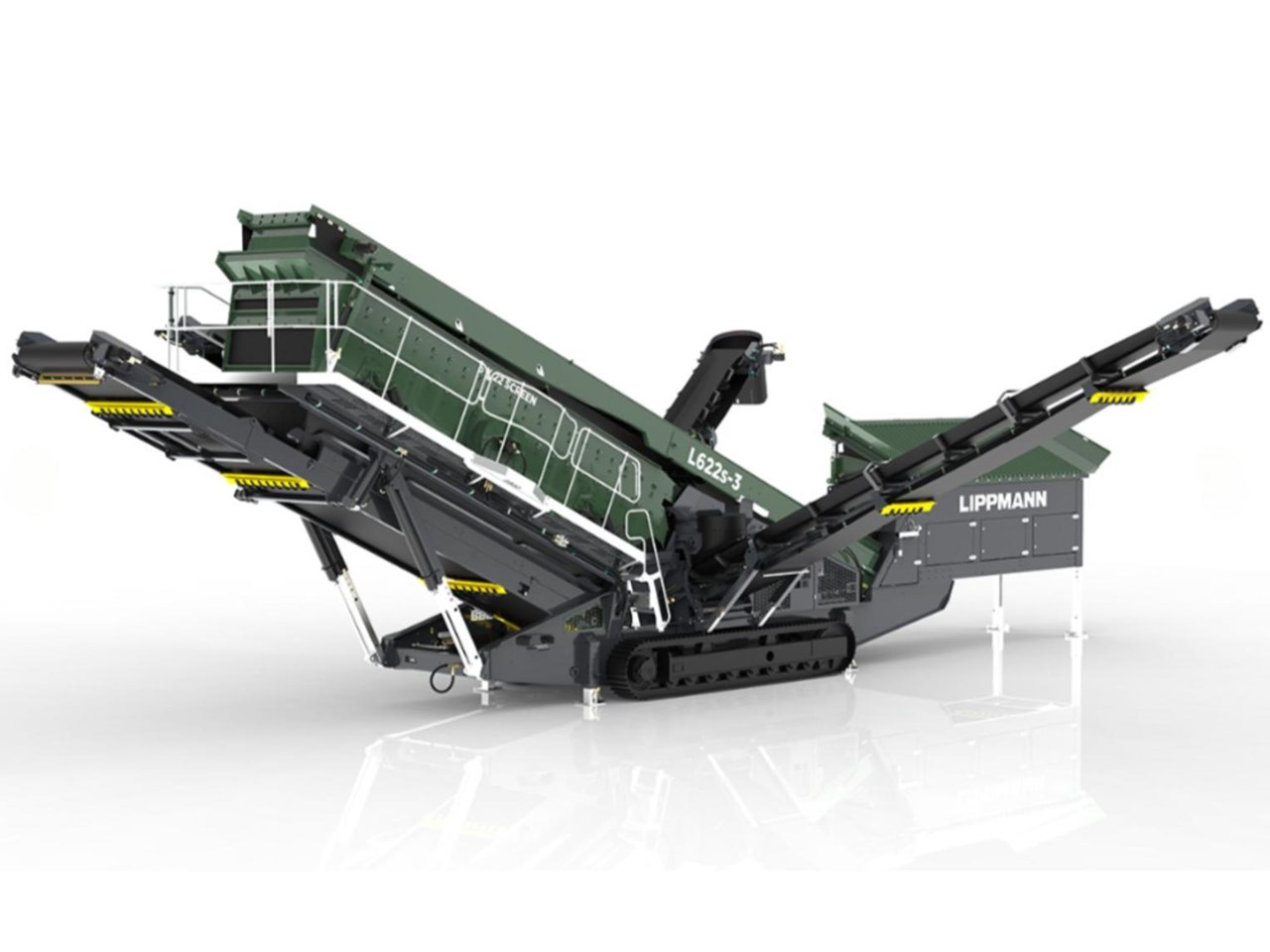

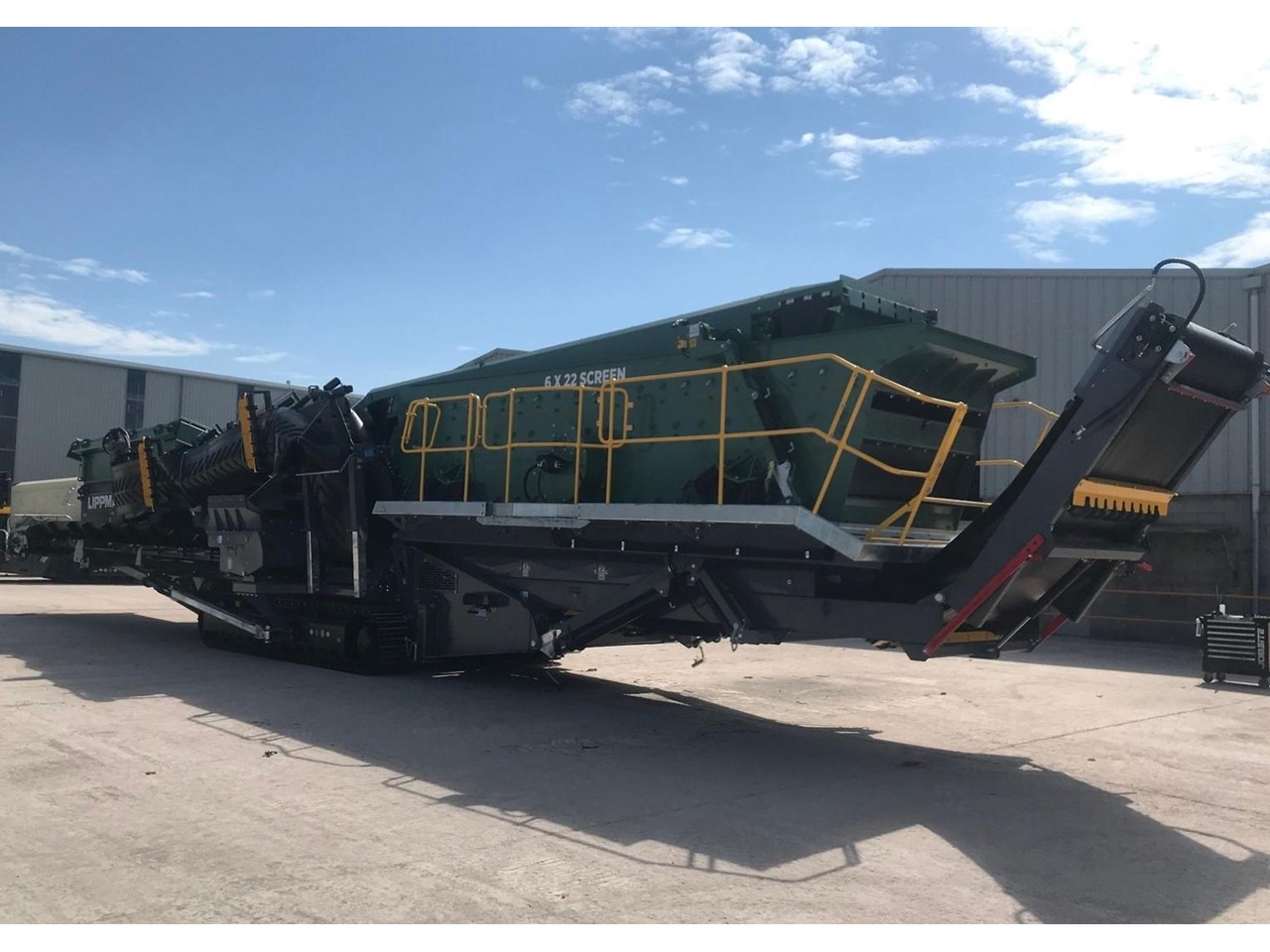

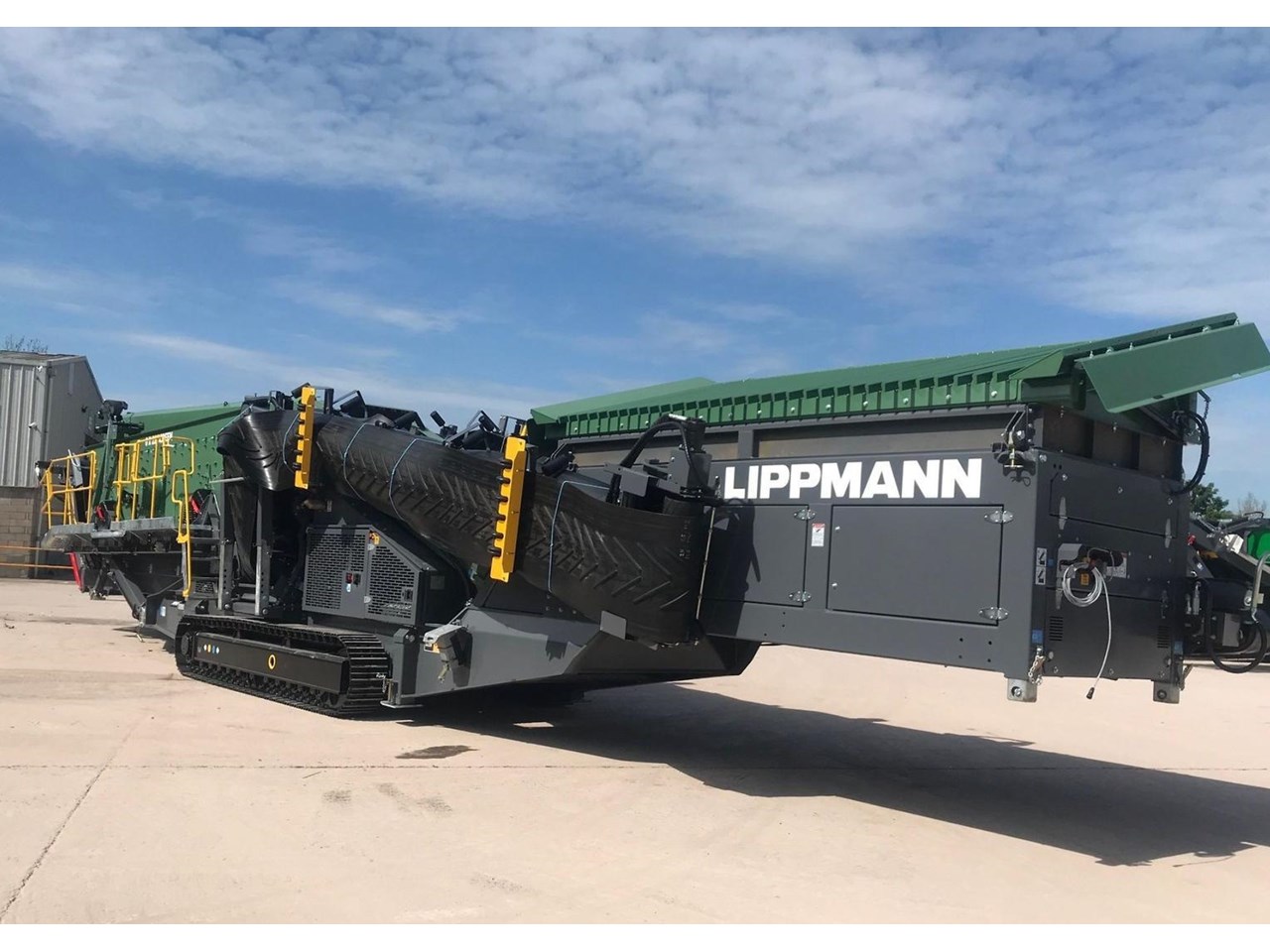

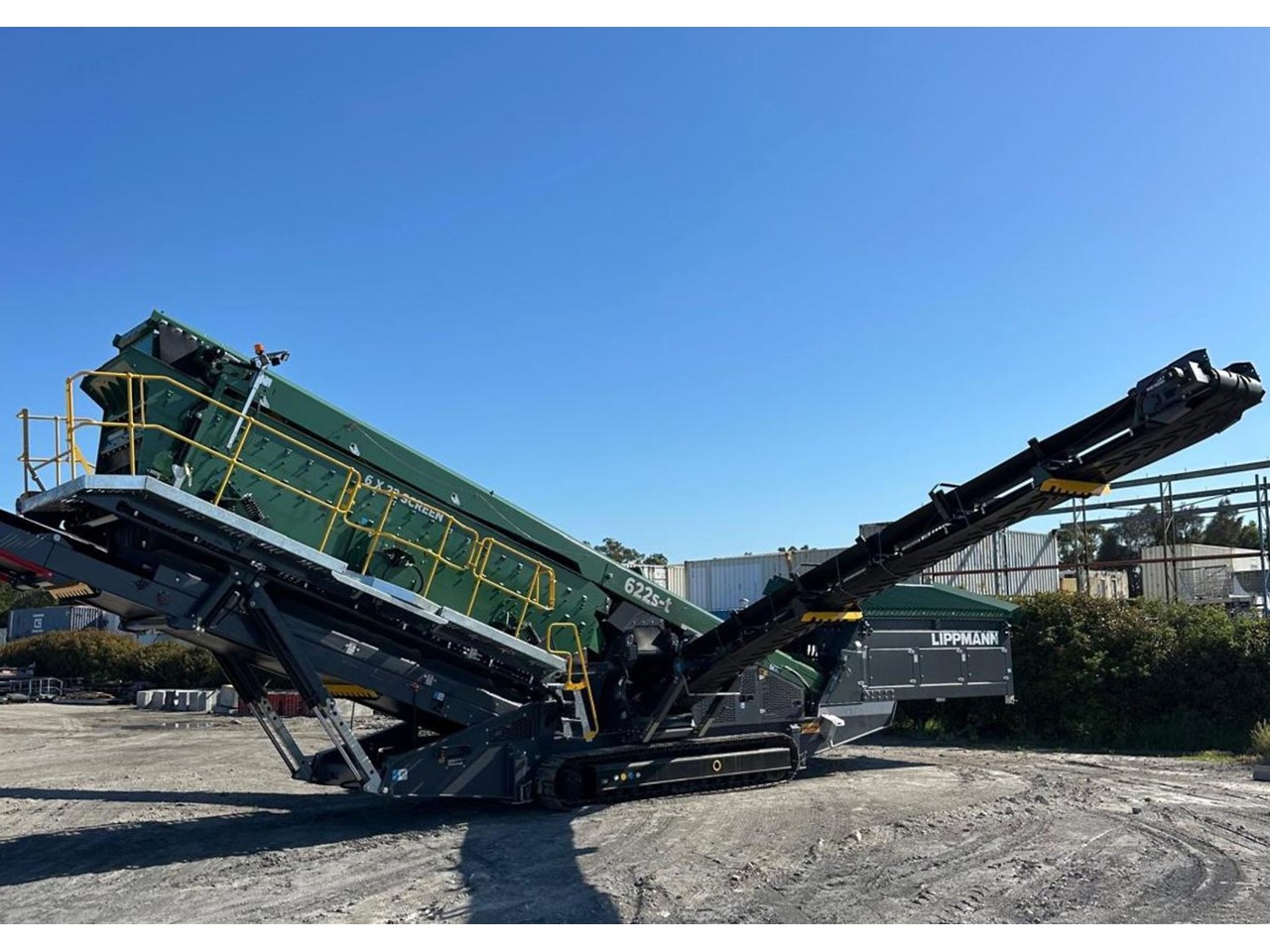

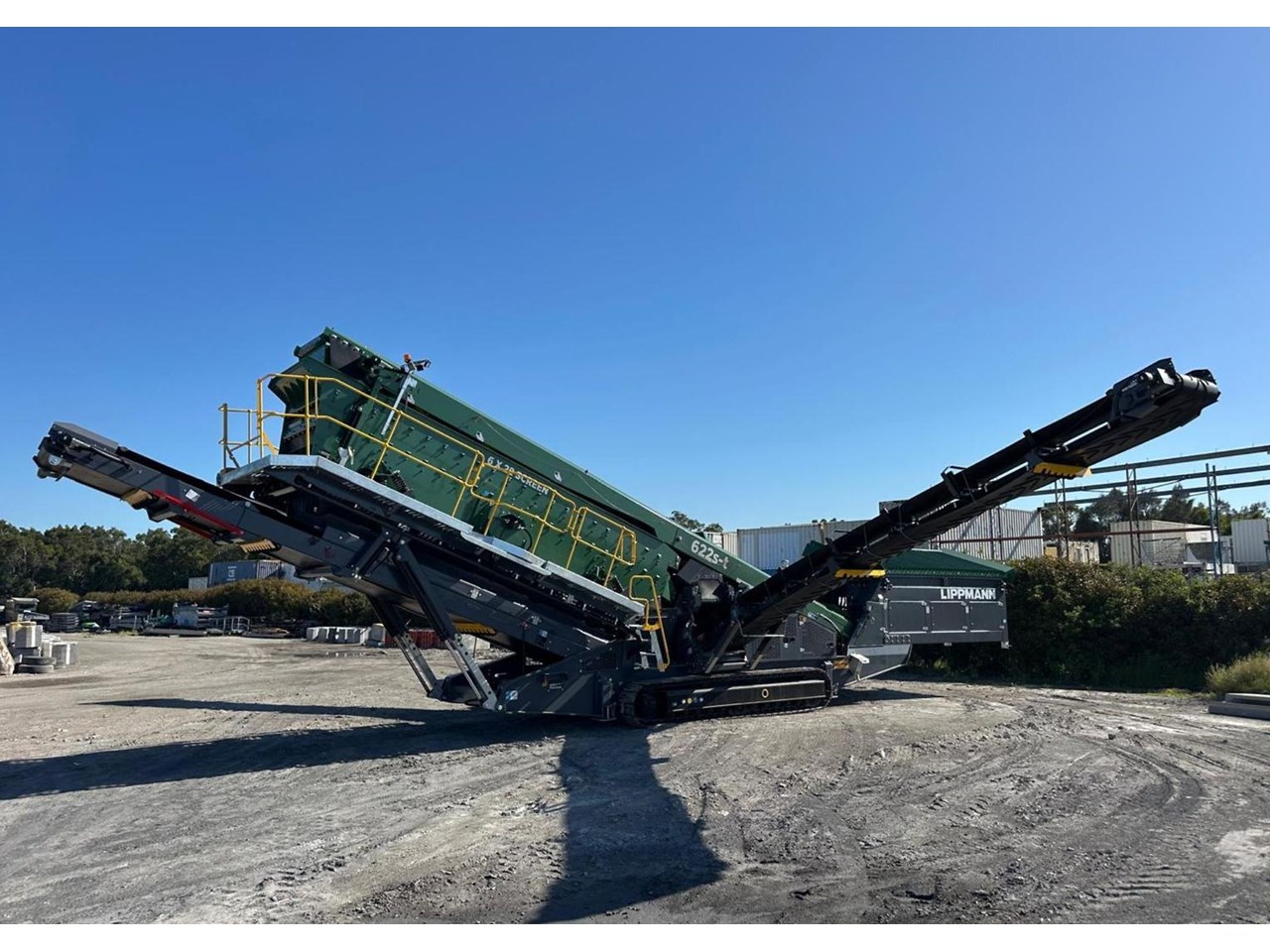

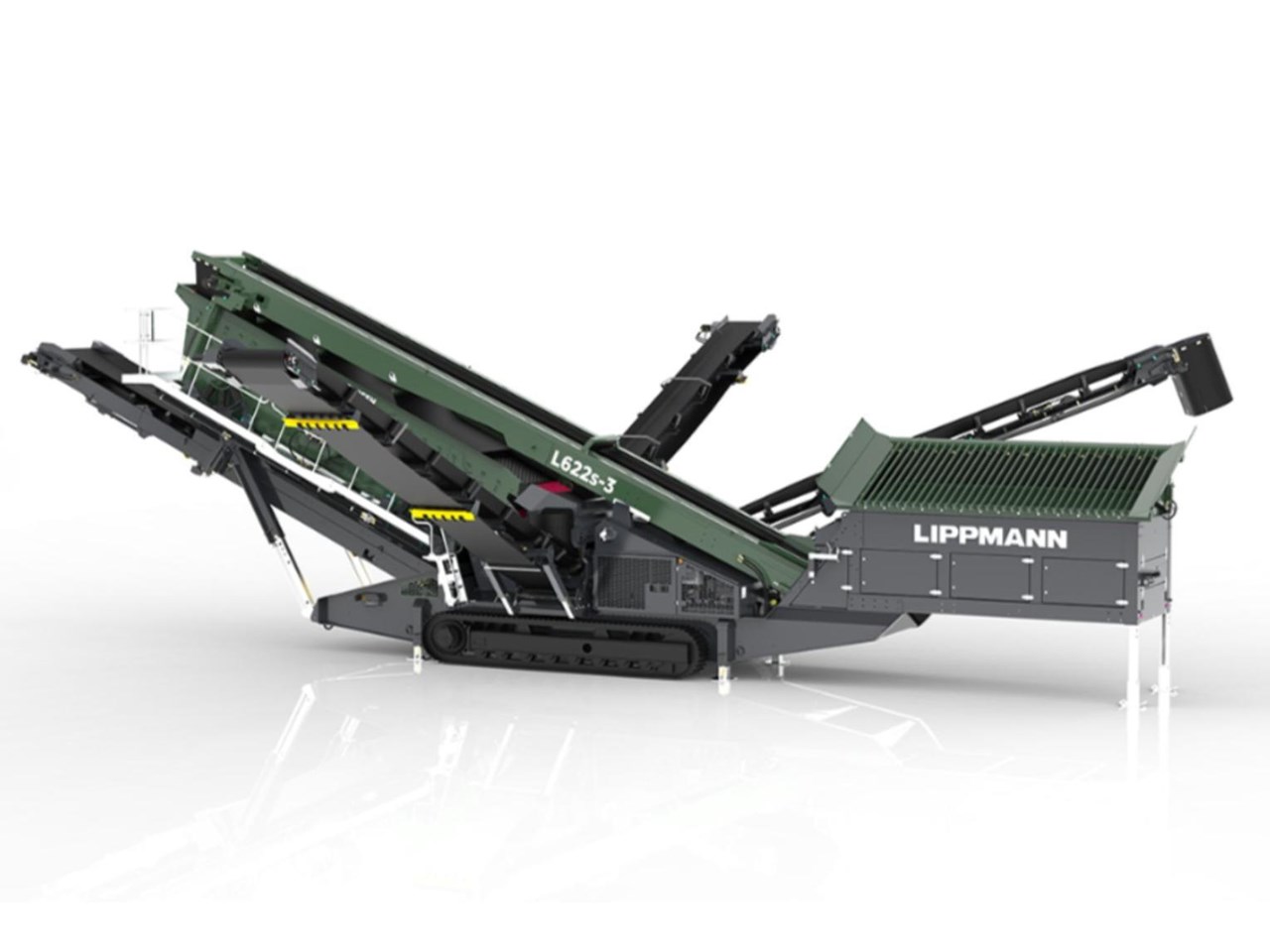

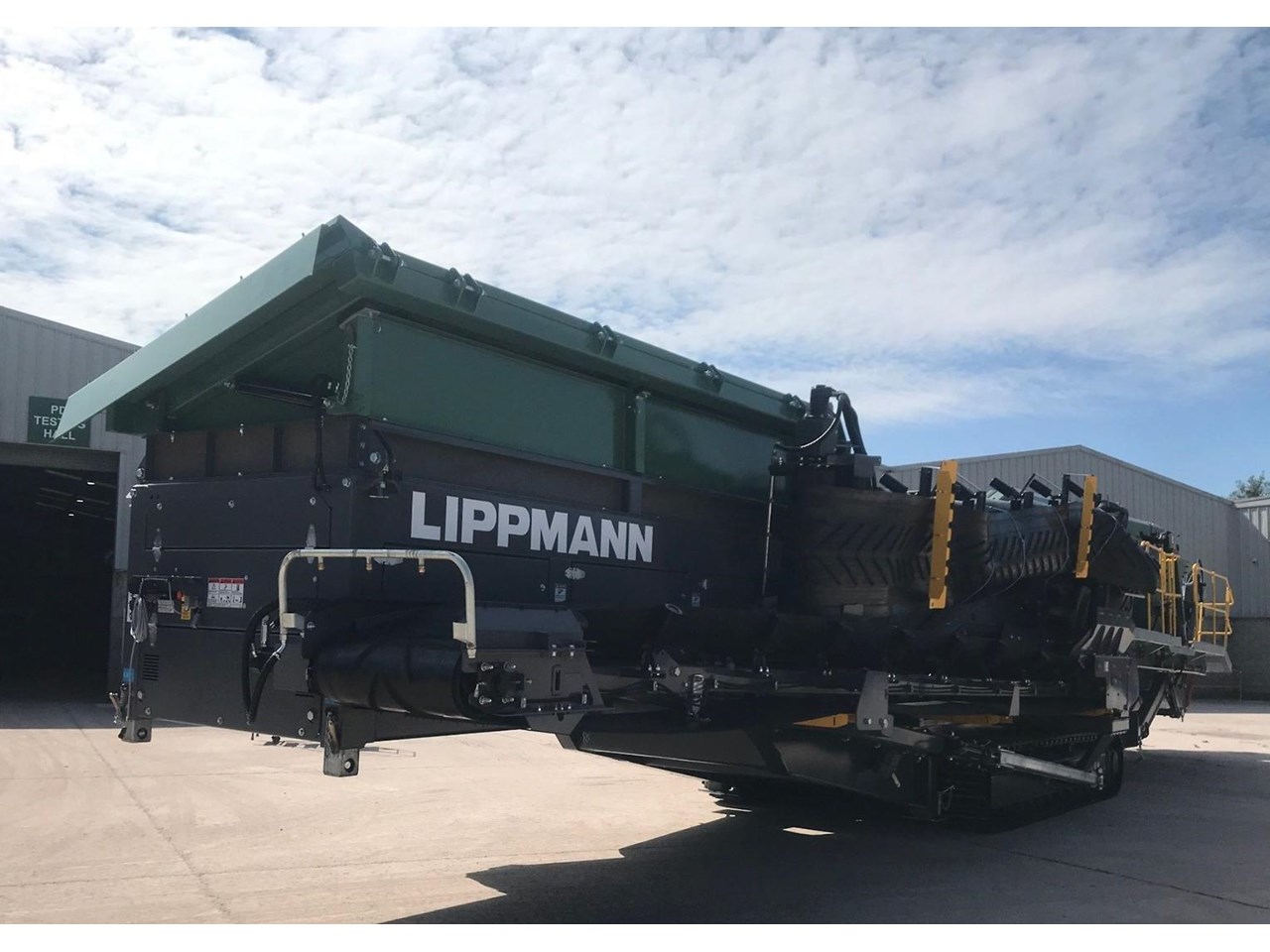

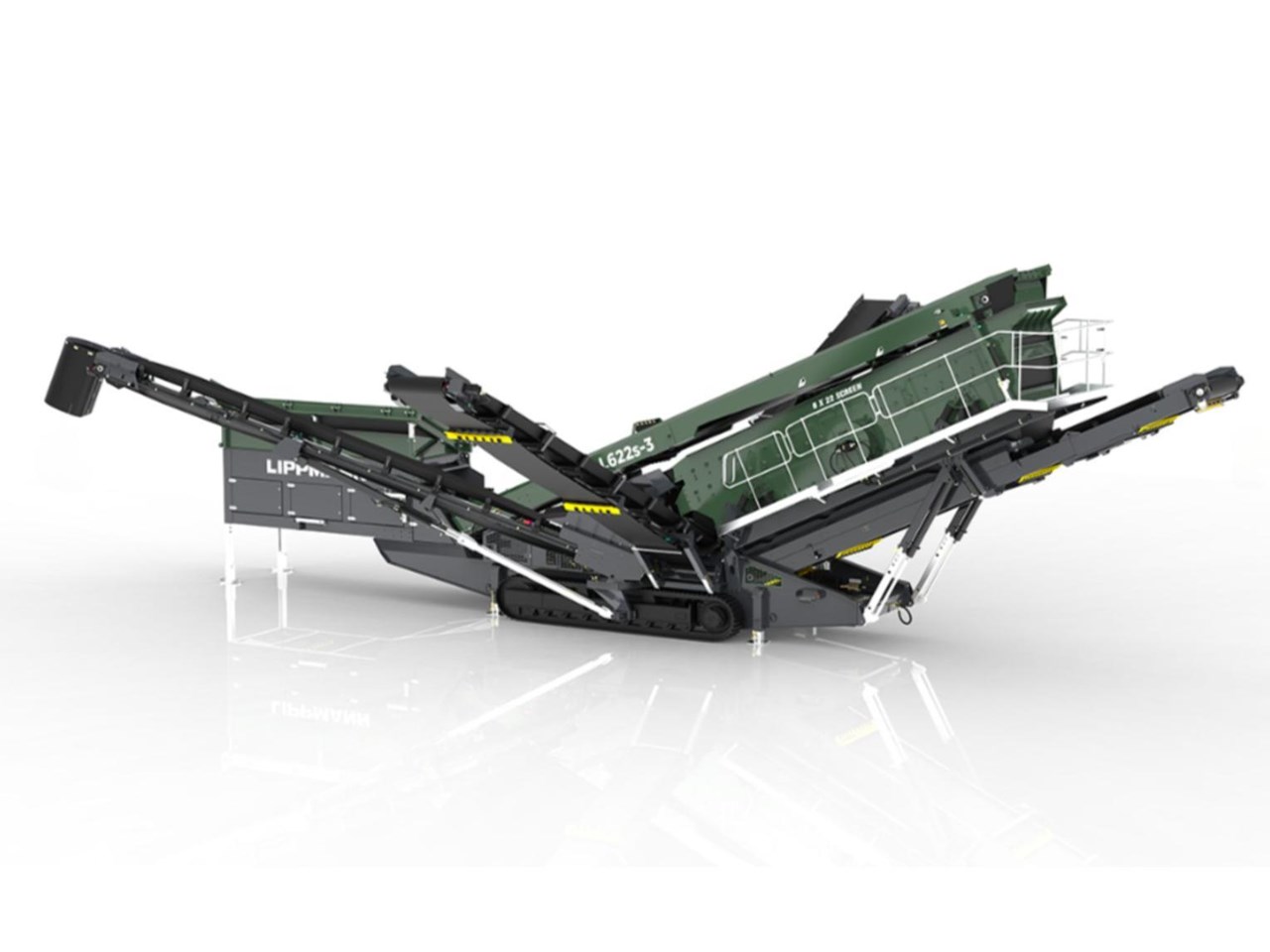

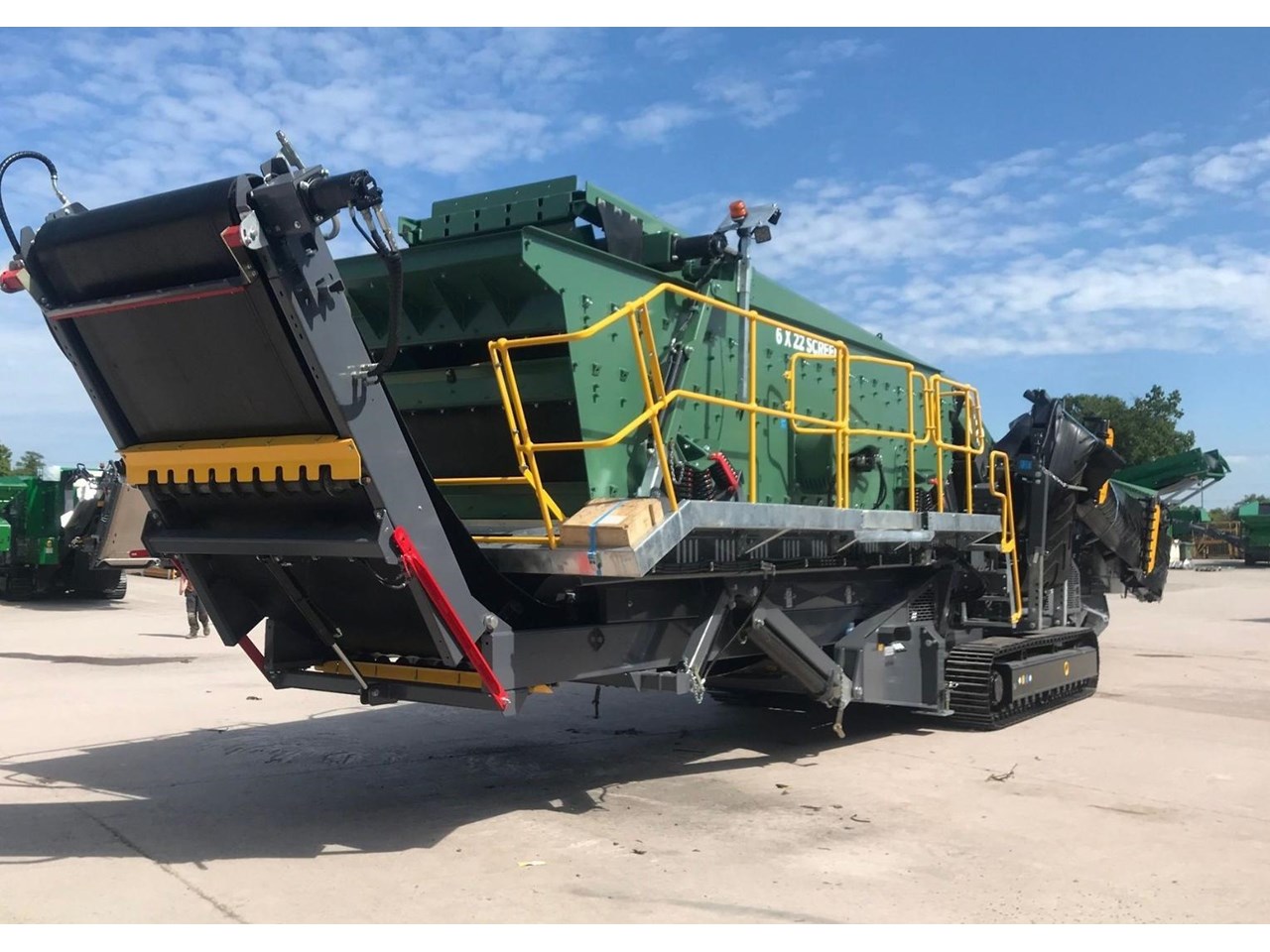

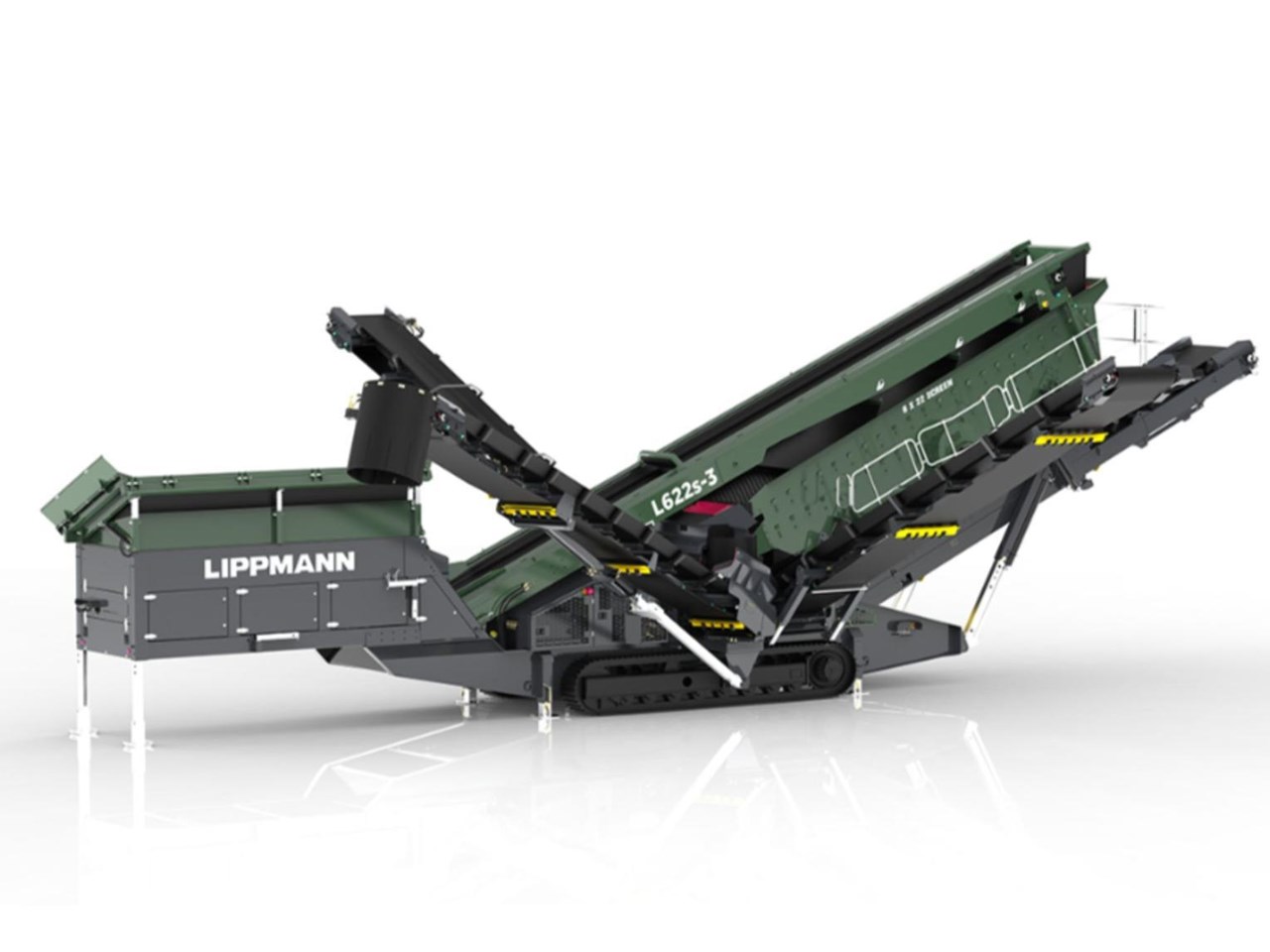

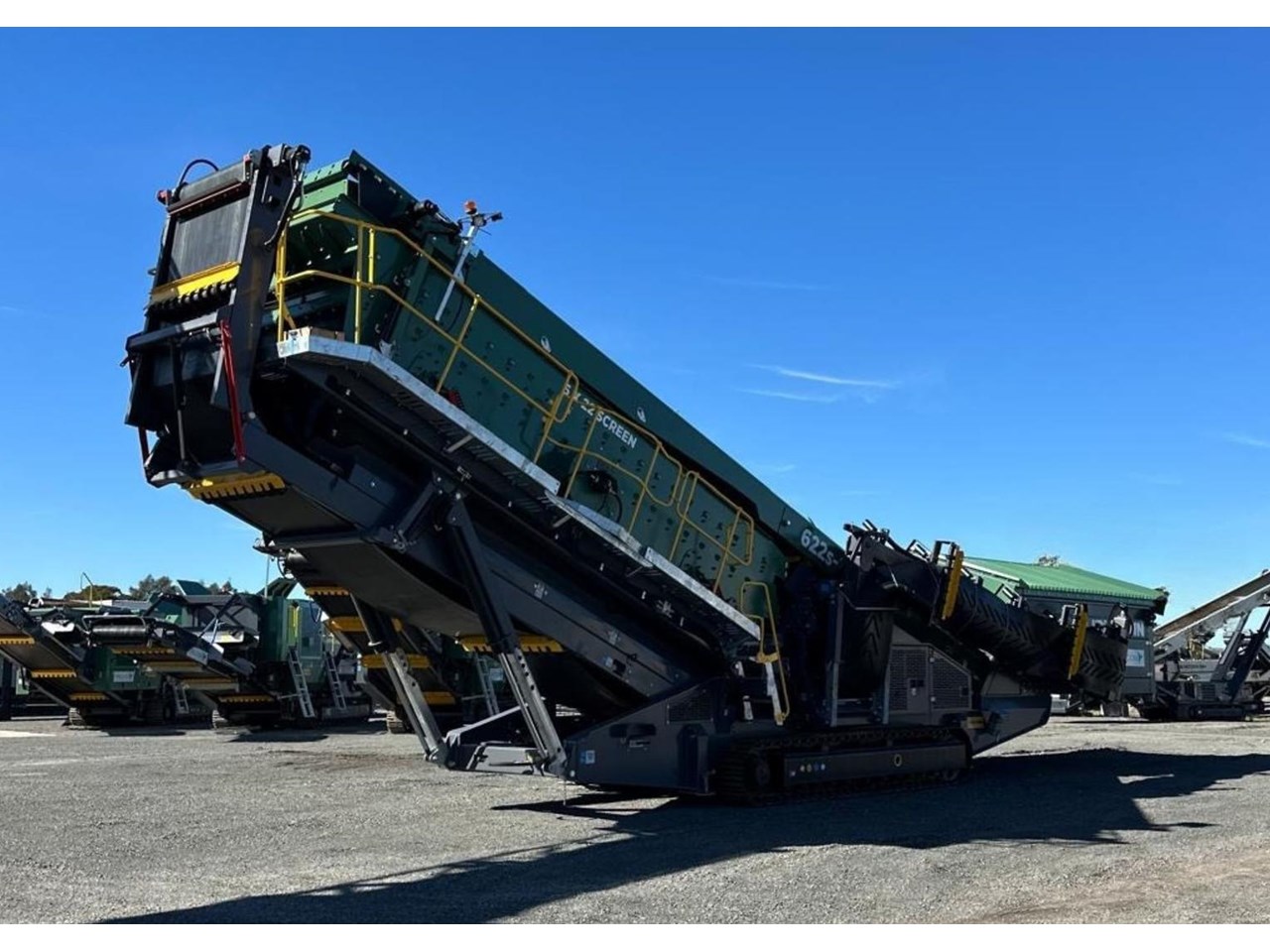

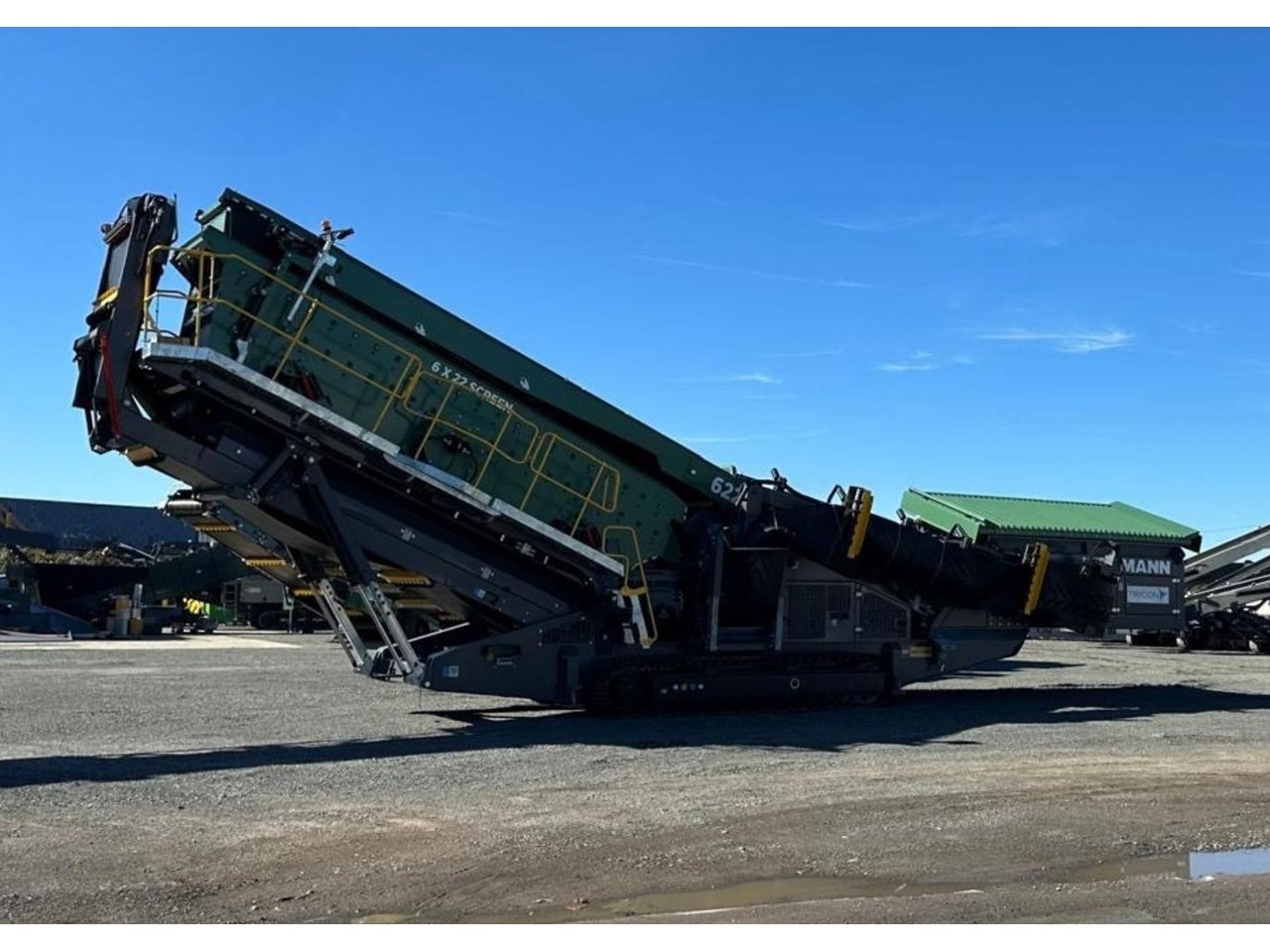

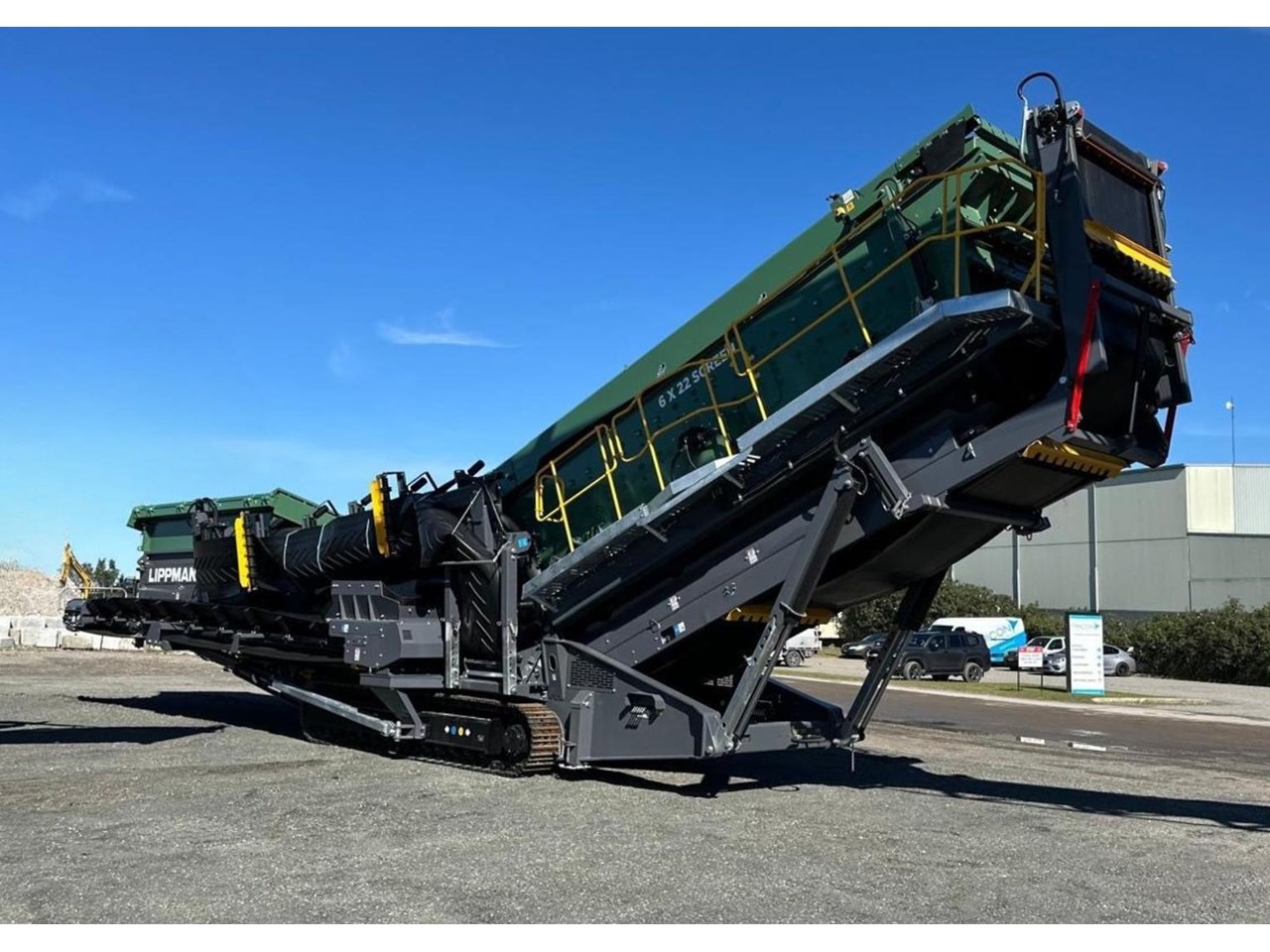

The most advanced and innovative 22'x6' portable vibratory screening plant today is the 622s-t. Featuring adjustable screen box angles allowing adaptability to a wide range of material applications including quarrying, mining, sand and gravel, coal screening, topsoil, and woodchip. With the highest-grade specifications and component parts, and offering a triple deck makes this screener a top choice for high productivity, quality and value.

FEATURES
- 22×6 heavy duty high energy 2 bearing 2 deck screen box
- 225Hp Cat engine
- Track or wheel mobile
- Integrated hydraulic folding stockpiling conveyors
- Remote control tipping grid
- Fast on site setup time -15 minutes

SPECIFICATIONS

Screenbox Specs
Top deck dimensions 6710mm x 1830mm (22'x6')
Bottom deck dimensions 6100mm x 1830mm (20'x6')
Top deck screens - 5 off 6'x4' side tension
Top deck screens - 1 off 6'x2' side tension
Bottom deck screens - 5 off 6'x4' side tension

Conveyor Specs
Side conveyor - stockpile height - track model 5100mm (16'-9?)
Side conveyor - belt width 800mm (32?)
32 deck transfer conveyor - belt width 1200mm (48?)
Feed conveyor - belt width 1200mm (48?)
Main conveyor - belt width 1400mm (55?)
Tail conveyor - stockpile height - track model 5398mm (17'-8?)
Tail conveyor - belt width 900mm (36?)

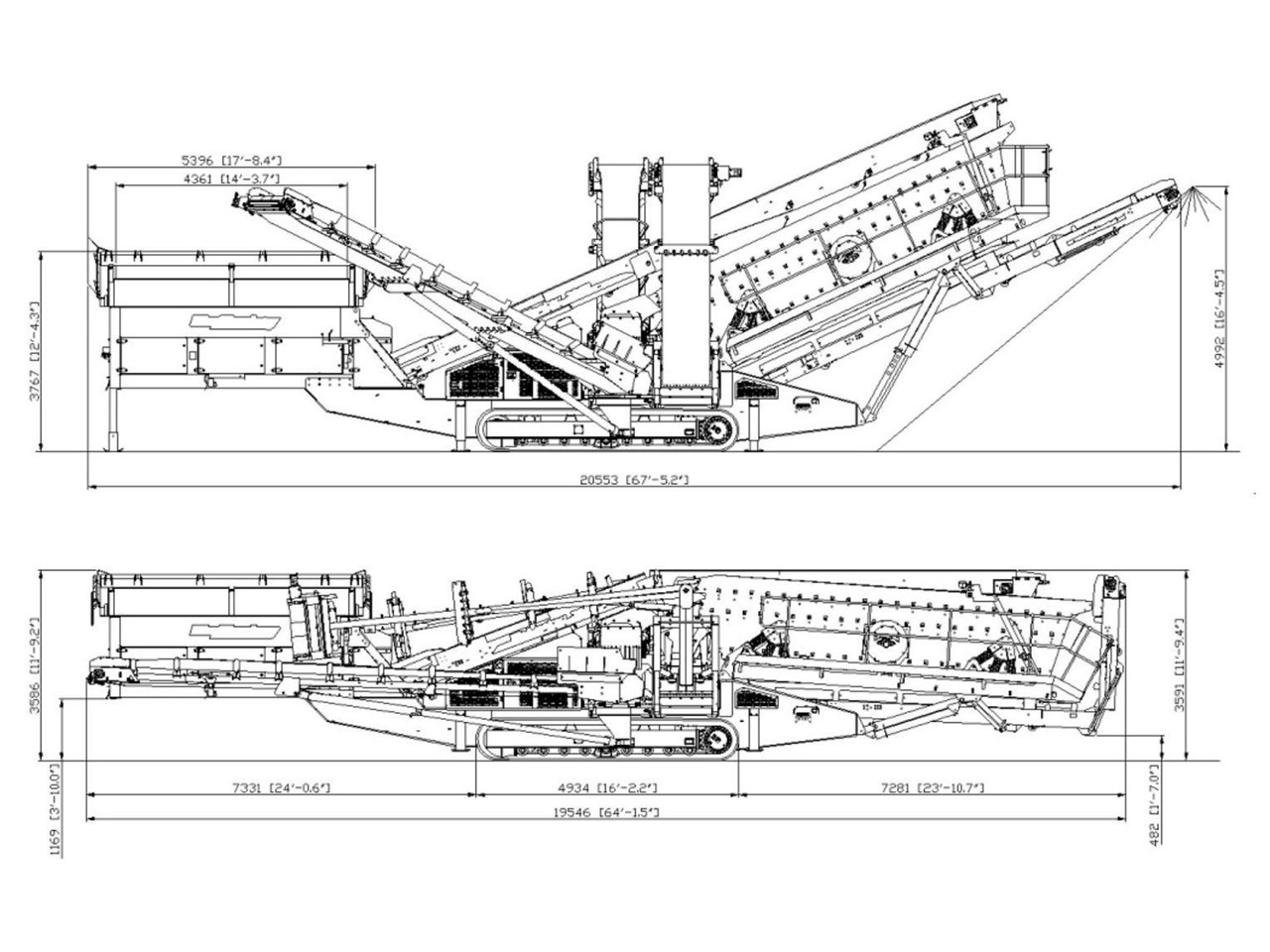

Transportation Specs
Length - transport 15ft hopper 19.55 (64'-1?)
Length - transport 12ft hopper 18.63m (61'.1?)
Width 3.66m (12?)
Height - transport track 3.59m (11' 09?)
Weight - track 40,500 kgs (89,287 lbs)
